Traxxas X-Maxx - 8S Power

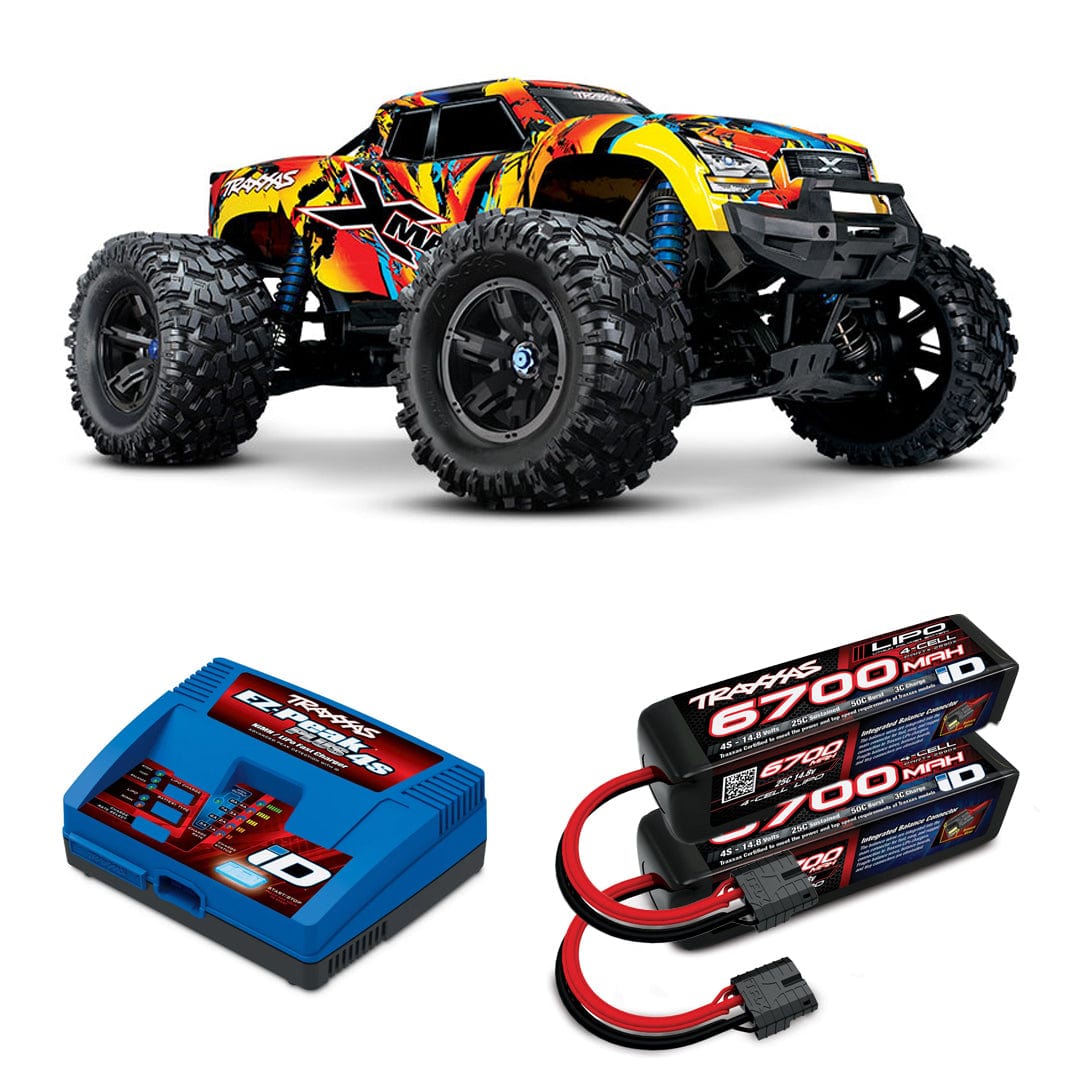

Traxxas X-MAXX RC Car

Traxxas' biggest, most powerful RC car!

Uninterrupted 4X4 power, massive size and award-winning technology make the X-Maxx a monster truck without limits. With an extreme 8S power of 30+ volts, the X-Maxx defies physics, reaching 80 km/h despite breathtaking acceleration and giant size! Designed to conquer the toughest terrains, X-Maxx offers an adrenaline-fuelled RC car experience!

Big Wins!
At the end of the day, the body always wins. The X-Maxx rides over obstacles and challenges in rough terrain that leaves smaller trucks stranded. Mammoth 8-inch-tall tires, long-arm suspension and ground clearance make the X-Maxx unstoppable!

Uninterrupted Power with Automatic Correction!
Too much power is never enough in Traxxas! The durability of the new VXL-8s only matches the power of an 8s 30+ volt dual LiPo battery. The speed-regulated 1200XL Big Block™ motor ramps up the X-Maxx with brutal torque. If you lose control and the X-MAXX turns upside down, you can continue the adventure with a single button press without moving from where you are! Whatever happens, nothing can stop you with X-Maxx!

Waterproof Design!

Thanks to Traxxas' patented waterproof design, you can play in all weather conditions!

Clipless Body Design

Say goodbye to old-fashioned clip-on bodies! Now you can separate the stem in seconds with the new Clipless Body Design.

Easy Access Battery Compartment

Another rational solution of Traxxas is the new battery holder, so you can easily fix your battery to your vehicle.

Integrated Balance Wheels

With the power of the MAXX 8s, it almost rears up at take-offs. It is equipped with integrated balance wheels to prevent the vehicle from losing its balance in this case.

MAXX-DUTY Components
The X-Maxx brings power to the ground through rugged all-steel drivetrain gears, the revolutionary Cush Drive system, and our strongest drive shafts ever. The all-new Torque-Biasing Center Drive increases driveline durability and drives larger module ring and pinion gears in the toughest differentials we've ever built.

Traxxas Stability Management (TSM)

TSM, Traxxas Stabilization Control, allows you to control the power, speed and acceleration provided by Traxxas models in a much easier and fun way. It provides more controlled turns and drift performance in all road conditions such as soil, ice, snow and asphalt. In bends and sharp turns, it allows the vehicle to go to the point you want to steer without losing control or spinning. Thus, your vehicle can make sharp turns without losing gas during turns. In addition, the TSM system helps you to stop your vehicle in sudden braking without losing control.

MAXX Power

The new VXL-8s ESC system is an all-new Traxxas design that combines advanced microprocessor control with sophisticated software for smooth responsive performance and a rich feature set. The VXL-8s provide real-time telemetry to the Traxxas Link application with the optional TQi Wireless Module (part # 6511, sold separately). The all-new Velineon 1200XL Big Block brushless motor delivers 50+ mph and enormous pulling torque.

Renewed Shock Tower Design

The X-MAXX's shock towers offer a rigid, triangulated structure and an authentic off-road look that fills the truck's wheel openings. They also act as a handy carrying handle and provide ground support for the X-MAXX when placed upside down for cleaning.

Double Cooling Fan Rock-Solid Motor Assembly

A completely new motor mount design supports the motor in a way that it cannot flex on the housing. The threaded mesh is held firmly in place with keyed pins, so no difficult adjustments are needed. Eliminating flex means longer gear life even in the toughest conditions. The new dual fan assembly helps cool the engine for longer run times and maximum fun.

Traxxas X-MAXX RC Car Features

All Features

Velineon VXL-8s Brushless Power System
VXL-8s Waterproof Electronic Speed ​​Control

• 8s LiPo compatible
• Built-in cooling fan
• Real-time telemetry via Traxxas Link
• Machined heat sinks
• 10 gauge silicon wire
• Integrated protection circuits
• LED status lights

Velineon 1200XL Brushless Motor

• "Big Block" brushless motor
• 4 poles 1275 kV
• 5mm output shaft
• Aluminum snap-on heat sink
• Dual motor cooling fans
• 50+ MPH Including Two 4s LiPo Batteries and Optional Spur Gear

Traxxas Stability Management

• Helps prevent deviations and loss of control
• Sets up to 100% help from the transmitter

TQi™ 2.4GHz High Output Radio System

• TQi™ 2.4 GHz transmitter
• Traxxas Links
• TQi™ 2.4GHz 5-channel micro-receiver (#6533) with fail-safe security and integrated telemetry ports
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models — just run and drive, no “model selection” required
• Multi-Function button
• Adjustable steering and throttle percentage (dual ratios)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• High 13ms frame rate and near-zero latency for responsive control
• Dual channel 1-input telemetry ready 5-channel micro receiver
• BEC Voltage and Engine Temperature Sensor installed

New Body Mounting System

• Quick one-handed installation and removal
• Uses the rotating rear latch mechanism
• Eliminates body posts and clips
• Reinforced for extra protection

Drivetrain

• Full-time shaft-driven 4-wheel drive
• All metal gears and CVDs
• Torque-Biasing Center Drive™ absorbs shocks and dissipates power
• 24 mm threaded wheel hexagons
• Wheel hexagons held by a clip
• 17mm hexagon outside the wheel
• Sealed, silicone fluid-filled differentials with large module ring and pinion gears
• Grooved outboard gears attached using the outboard bolt method
• Heavy-duty Cush Drive™ with steel spur gear
• Fully machined aluminum stud axles
• Grooved aluminum center drive shaft

New Engine Mounting System

• Precise, preset gear mesh settings
• No manual gear net setting required
• Engine retention separate from gear mesh

New Modular Composite Chassis

• Rigid Chassis Structure
• Modular chassis design interlocks with front and rear compartments
• Engine mounts in rear compartment to eliminate gear cracking flex
• Easy to service and access components
• Driveline sealed to chassis to keep dirt and sand out

New Battery Retention System

• No body clips or velcro straps
• Battery handles swivel for easy access
• Adjustable according to battery size
• Safer than traditional holding systems
• Integrated into the case top support for enhanced battery tray and case rigidity

New Steering Bell Cranks and Servo Saver

• New high output steering servo
• Connects directly to the RX box, no external cables visible in the case
• New mounting system to fully support the chassis
• Double cutout, bearing assisted servo horn

Suspension

• Designed to optimize suspension travel and steering angles
• All critical suspension points have double shear strength
• High strength steel suspension pins used throughout
• Suspension pins retainers will not loosen or "pop back"
• 4mm machined pivot balls
• C-hub and steering block geometry maximizes steering angle
• Adjustable roll center
• Fixed, high-strength camber and end joints
• Steel upper and lower tie rods
• Full contact sealed bearings for outdoor use

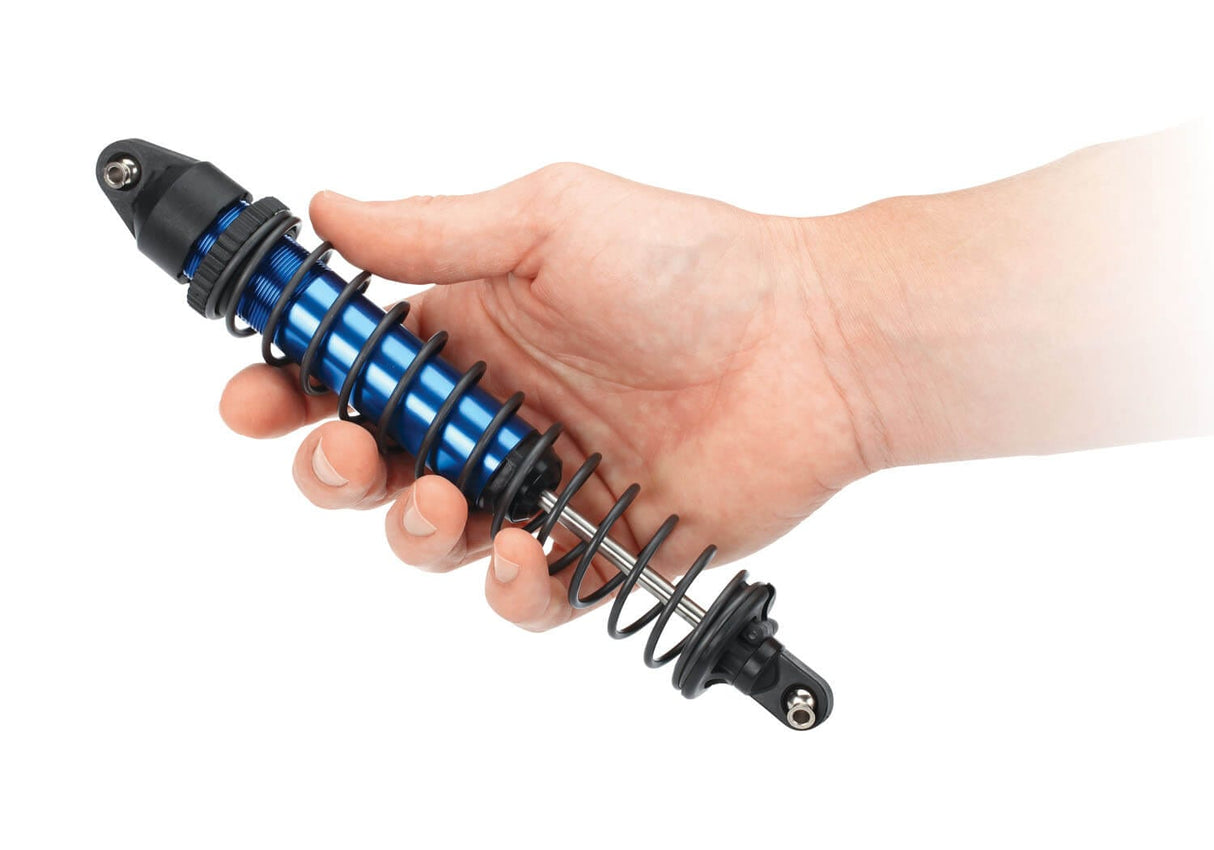

New GTX Shocks

• Machined aluminum threaded body
• Extra large bore and capacity
• 5.2mm damper shaft
• Bottom seal cartridge includes integrated wiper seal combination
• Adjustable upper spring holder
• Plastic shock caps with pivot balls
• Fixed shock locations
• Bolted bottom spring perches

bumpers

• Front energy absorbing rubber shock buffer
• Lower front and rear skids for impact and abrasion resistance
• Integrated nerf bars for side impact resistance

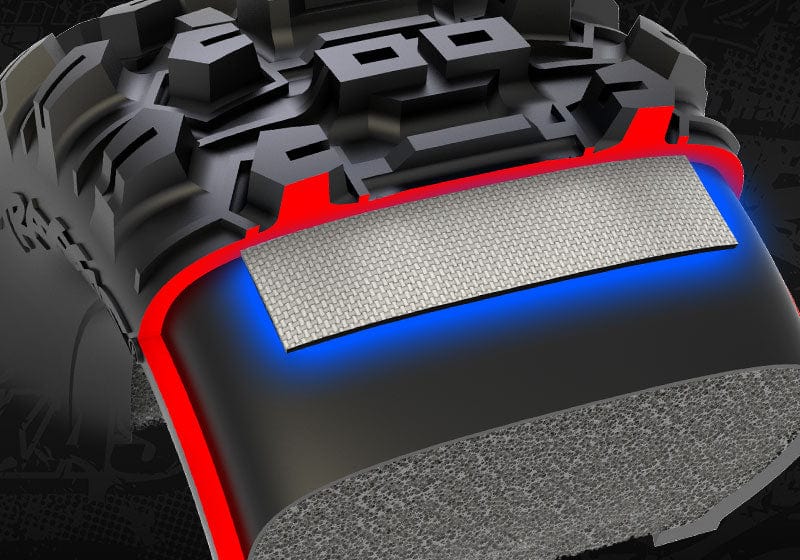

Wheels / Tires

• 8x4x4 inch off-road tires
• Large, double-diameter wheels
• Specially formulated 8s rubber compound
• 2-piece sponge
• High strength glue and bead design

WHAT YOU NEED TO COMPLETE

BATTERY
IMPORTANT: X-Maxx requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh or higher, Power Cell LiPo batteries with iD recommended

LiPo Balance Charger with iD
Traxxas EZ-Peak Live 4s enabled charger recommended for easy and fast charging performance

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
