TRAXXAS SLEDGE 1/8 4WD RC CAR

NEW FORM OF 1/8 SCALE OFF-ROAD!
The brand new Sledge® is built to exceed your expectations for quality, durability and fun. The rock-solid chassis, massive steel drivetrain, wild 6s power and race-inspired handling leave everything else tiny next to it!

VXL-6s Power Unit

The Velineon VXL-6s has new hardware and new tuning features specifically for the 2000kV motor. Together they deliver significantly more power under the curve for increased mid-range punching and fully charged acceleration you can see and feel.

MONSTER SERVO
The Sledge is equipped with a high performance metal gear servo that packs enormous torque inside a heat dissipating aluminum center case. Powerful and reliable steering authorization is provided without any upgrades.

STRONG UPPER CHASSIS
The Sledge is designed to have the strongest chassis in its class. The triangular frame structure integrates a deeply formed aluminum plate with a multi-point composite cage system and patent-pending full-length T-Bar™. Built on a solid foundation, Sledge is strongest where it matters most.

NEW CLIPLESS BODY
Remove and replace stems in seconds with exclusive, patent-pending clipless stem solutions designed by Traxxas. The clipless body of the Sledge goes on smoothly with a satisfying snap. The body is designed to come out when you release it.

DESIGNED FOR 6S POWER
The Sledge is the only truck in this class with a properly sized 6s powertrain. Bigger gears. More steel. Basically bombproof. The Sledge is breaking the status quo to become the new standard for outstanding 6s durability.

SLEDGEHAMMER TIRES
Premium Sledgehammer® tires are standard equipment. No tire upgrade required. Durable foam inserts are designed not to clump or splinter. The patent-pending Traxxas innovation explores the upper range of Sledge's capacity while improving the tire bonding process to reduce the chance of a tire bursting.

Sledge offers track-worthy handling thanks to its superior design and ultra-low center of gravity. GT-Maxx shocks and finely tuned spring rates combine for exceptional response and control.

It is completely waterproof! Sledge continues the Traxxas legacy with our patented, industry-leading waterproofing solutions.

TSM GROWTH SYSTEM

(TSM) makes it easy for anyone to experience the full 6s Velineon horsepower. TSM works behind the scenes to control excessive drift, avoid drift, and focus on high-performance entertainment.

ALL FEATURES

VXL-6s Waterproof Electronic Speed ​​Control

• 6s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link™
• 3-LED status indicators
• Electrical accessory ports
• 10 gauge silicone wire
• Patented Traxxas High Current Connectors

Velineon® 2000kV Brushless Motor

• 4 pole 2000kV brushless motor
• 5mm output shaft
• Finned box for better heat dissipation
• Aluminum engine skid mount
• Supports all engine
• Reduces flexibility for longer gear life
• Up to 70+ mph with two 3s LiPo Batteries

Traxxas Stability Management® (TSM)

• Improves flat road acceleration and braking on low traction surfaces
• Never dulls the throttle or slows the truck
• Sets the boost from the transmitter from off to 100%

TQi™ 2.4GHz High Output Radio System

• TQi™ 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function button
• Adjustable steering and throttle percentage (dual ratios)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• High 13ms frame rate and near zero latency for responsive control
• Fail-safe 5-channel micro-receiver (#6533)
• Patented waterproof receiver box with easy access plug

Drivetrain

• Heavy-duty steel drive shafts
• Large 8mm steel stud axles
• steel dog bone central drive line
• Protective rubber boots on differential inputs

gearbox

• Mod-1 pinion and spur gears
• Fixed gear mesh system
• Torque Weighted Center Drive

Differential

• Heavy-duty sealed 4-speed design
• Large scale steel ring and pinion gears
• Large 8mm output shafts
• steel drive cups
• Easy access compartments

Oiled GT-Maxx® Shocks

• Longer rear shocks for more travel
• Machined aluminum threaded body
• Extra large diameter and capacity
• Large diameter damper shaft
• Double X-ring bottom cartridge
• Height adjustable spring holder
• Bolted bottom spring perches

Suspension

• Performance optimized geometry
• Ultra durable composite arms
• Made from our strongest cold weather material
• Molded tip for a clean look
• rear rock deflectors
• Depress the hinge pins to reduce the gap
• Oversized molded nose and camber links
• Heavy-duty C-hubs
• More powerful than traditional designs
• No setting required
• Multiple mounting points for suspension adjustment

Chassis

• 3.2mm ribbed aluminum case
• Shaped edges for enhanced strength
• Thick T-Bar™ for more rigidity
• Stronger than round bars
• High strength support in shock towers
• Ultra-thick 5mm 6061-T6 aluminum shock towers
• Robust locked battery compartment with quick-release door
• Low CG design for advanced use
• Interlocking components for tight tolerances
• Solid front and rear bumpers double as skid plates
• Hidden wire management for a clean look

ProGraphix® Body

• Clipless body mounting system
• Rigid inner frame
• Molded body reinforcements for tear protection
• Protective roof skids
• Robust, high downforce rear wing

wheels and tires

• Large 6.7” Sledgehammer® all-terrain tires
• TSM-rated construction resists ballooning
• Rigid 3.8” black wheels
• Splined 17 mm aluminum axle hubs

Steering wheel

• High throw bell crank steering design
• Heavy duty servo saver with aluminum posts
• metal servo horn
• Powerful #2275 metal gear servo
• 347 oz-inch torque
• completely waterproof

Sealed Ball Bearings
Rust Resistant Black Oxide Coated hex hardware

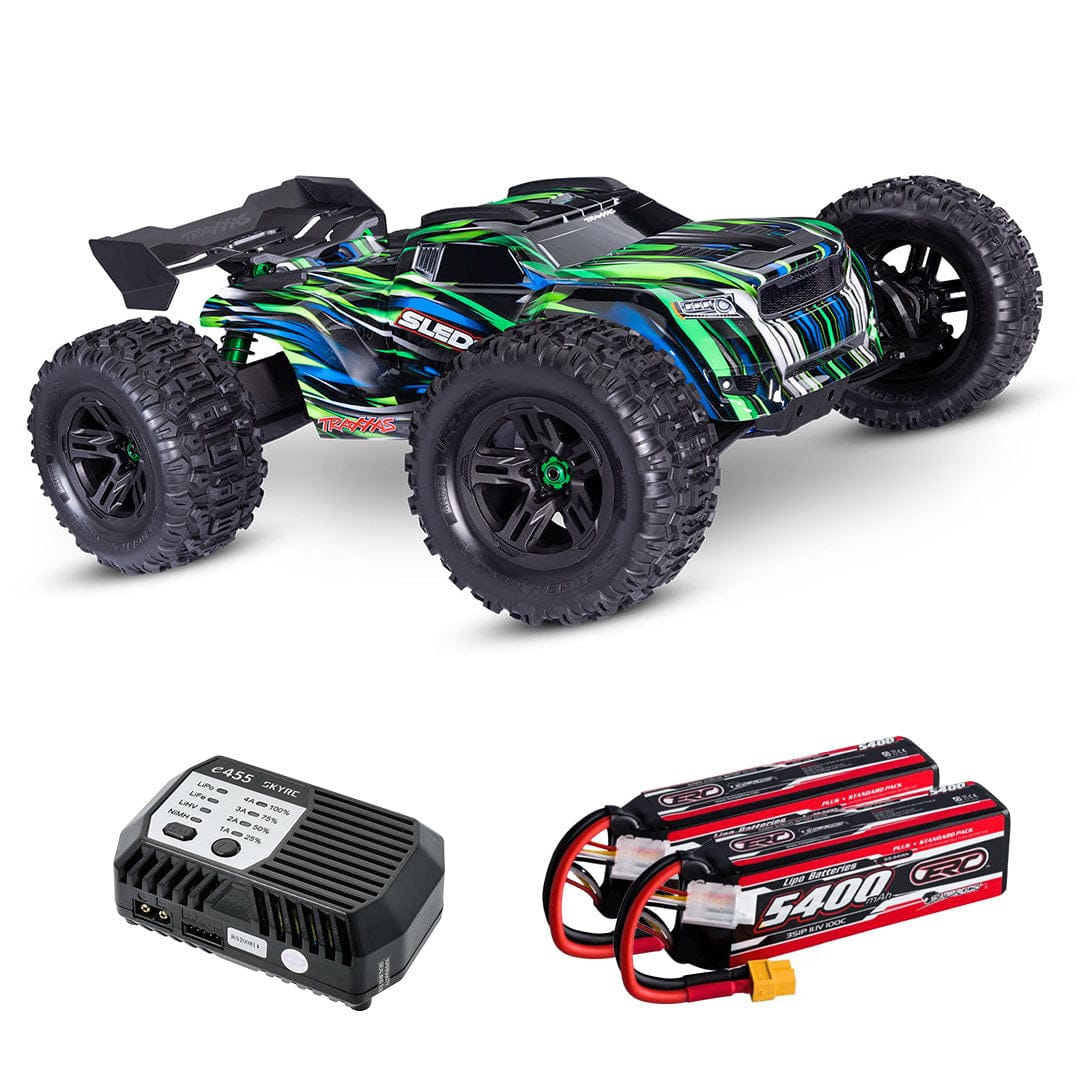

WHAT YOU NEED TO COMPLETE

LiPo Batteries
Traxxas recommends dual 5000mAh 3-cell 11.1V Power Cell LiPo batteries for maximum performance. Dual 7600mAh 7.4V LiPo batteries or a single 6700mAh 14.8V LiPo battery will run the vehicle with poor performance. NiMH batteries are not supported.

LiPo Balance Charger with iD™
Traxxas EZ-Peak® Live 4s-enabled charger is recommended for easy and fast charging performance (model #2971).

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
